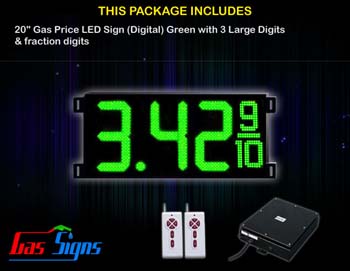

Gas Price LED Sign (Digital) 20 Inch Green with 3 Large Digits & fraction digits - Complete Package w/ RF Remote Control with housing dimension and format 8.88 9/10 comes with complete set of Control Box, Power Cable, Signal Cable & 2 RF Remote Controls (Free remote controls). Grab attention of customers from as far as 1000 foot with maximum viewing time 27.3 seconds.
Double your sales with Bright, High Quality and Long-Lasting Led Gas Price Sign.
Long Lasting Bright Led Signs
Waterproof / Weatherproof (protected by a clear acrylic front cover)
IP 65 (Ingress Protection Rating) makes it withstand all weather as well as natural calamities
Wireless Remote control with up to 300 feet direct line of sight
Now customize Led Gas Price Sign with your choice of format, color, number of displays. No more moving around looking for a Led Gas Price Sign of your choice. Just complete the form (www.gasledsign.com/custom-gas-sign.php) and allow us to get the lowest quote possible for the custom sign. Take a few minutes now towards a long term investment in your company!
LED Digit Height
Sign Height
(inches)
Sign Width
(inches)
Sign Depth
(inches)
Weight
(Lbs)
Colors
8"- 8.88 9/10
10.5
25.35
2
13.2
10" - 8.88 9/10
12.75
27.30
2.15
17.6
12" - 8.88 9/10
15
32.45
2.15
19.8
16"- 8.88 9/10
19
41.80
2.15
35.2
24" - 8.88 9/10
27
64.43
2.15
57.2
36" - 8.88 9/10
38.5
94.77
4
246.4
MAXIMUM VIEWING TIME AND DISTANCE
An average of at least 4 seconds is needed
for a moving Vehicle to adequately recognize
and comprehend the content of a sign.
Character Size
Max. Viewing Distance
Max. Viewing Time (Seconds)
inch
mm
foot
meter
25mph/
40kph
35mph/
56kph
45mph/
72kph
55mph/
89kph
65mph/
104kph
8
203
400
122
10.9
7.8
6.1
5.0
4.2
9
229
450
137
12.3
8.8
6.8
5.6
4.7
10
254
500
152
13.6
9.7
7.6
6.2
5.2
12
305
600
183
16.4
11.7
9.1
7.4
6.3
16
406
800
244
21.8
15.6
12.1
9.9
8.4
20
508
1,000
305
27.3
19.5
15.2
12.4
10.5
24
610
1,200
366
32.7
23.4
18.2
14.9
12.6
36
914
1,800
549
49.1
35.1
27.3
22.3
18.9
48
1,200
2,400
732
65.5
46.8
36.4
29.8
25.2
60
1,542
3,000
914
81.8
58.4
45.5
37.2
31.5
Along with Housing Dimension (HxWxD)
Available in 150 Watt & 300 Watt
Power & Programming Source
Control Box
PROGRAMMING INSTRUCTIONS
1
Digit-Up- (Button 1)
The Flashing Digit on the Price Display will INCREASE by one
2
Digit-Down- (Button 2)
The Flashing Digit on the Price Display will DECREASE by one
3
Shift-Left- (Button 3)
The Flashing Digit on the price display will shift to the next digit on the LEFT, for each individual
price display. Use EDIT button #5 to switch between displays
4
Shift-Right- (Button 4)
The Flashing Digit on the price display will shift to the next digit on the RIGHT,for each individual
price display. Use EDIT button #5 to switch between displays
5
Edit- (Button 5)
Press 1 time to enter EDIT mode, and the first digit will begin to flash. Press EDIT again and
the function moves to the first digit on the next display.Cycle thru all displays in the order they
are wired.
6
Confirm- (Button 6)
Press button #6 to save all programming
2 Remotes / Cables
Control Box
Mounting Bracket
How we pack
Warranty Policy upon initial arrival of product: All orders are guaranteed to arrive without breakage. If upon delivery (and following the instructions for testing) the product does not light, please contact our Customer Service Department ([email protected]) within 48 hours.
All gas price changer signs shall be warranted and guaranteed free from any defect in materials and workmanship for 2 years from the date of purchase with the exception of default or damage caused by accident, misuse, abuse, neglect, improper installation, or improper maintenance.
In the event the sign requires maintenance - Gas LED Sign will provide the required parts and customers are responsible for replacing them and transportation from the factory/warehouse to customer.
What are the lead times for Gas Price Changer signs?
Upon payment, we will eventually process your order. However a lead time of 2-3 weeks is required. Because haste makes waste, we give our team enough time to bring about personalized gas price signs for you.
What do the signs come with?
Our Gas Price Changer signs come with everything you need to operate such as a control box, cables, and remote. This way, you can use your unit as soon as it reaches you.
What is the warranty policy should the sign arrive damaged?
The signs are usually available in colors of Red, Green, Yellow and White. Please refer to colors for more information.
What sizes do these signs come in?
The size of the sign is determined by the letter’s height. We offer signs from 8" up to 24". Please refer to sizes for information. Also, do not forget that you can customize your order with the help of our Custom Gas Sign Form.
What formats do these signs come in?
The Sign Formats are available in 8.88, 8.888, 8.88* and 8.88** Allow our customer service support to help you find the right regional format that you need.
How long do gas signs last?
Our signs can last an average of 8-12 years.
Can you keep them on all day & night? And if so, will it affect the longevity?
Yes, you can keep them on 24/7 without affecting the longevity
Are these OUTDOOR signs?
Yes, all of these signs come in a waterproofed and weatherproofed iron cabinet
